Truth, Simply

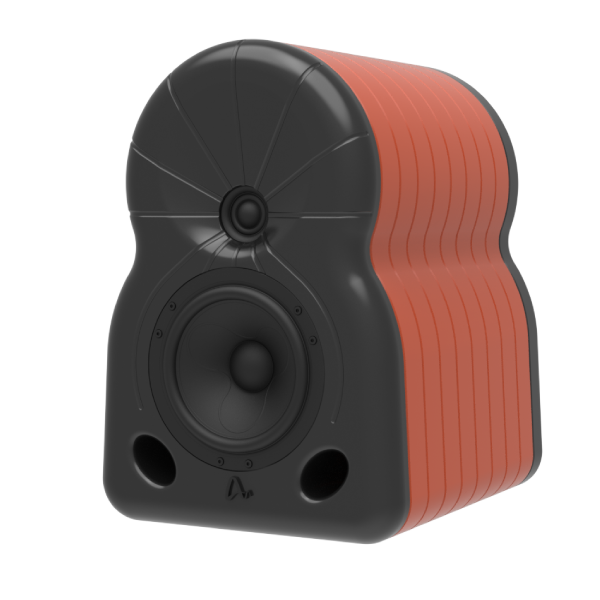

Maya ii is a 2-way high precision active monitor, while also suitable for any home environment. Developed to overcome all typical sound and quality challenges of current loudspeaker trends. Maya ii delivers big and accurate sound in a small package.
Features

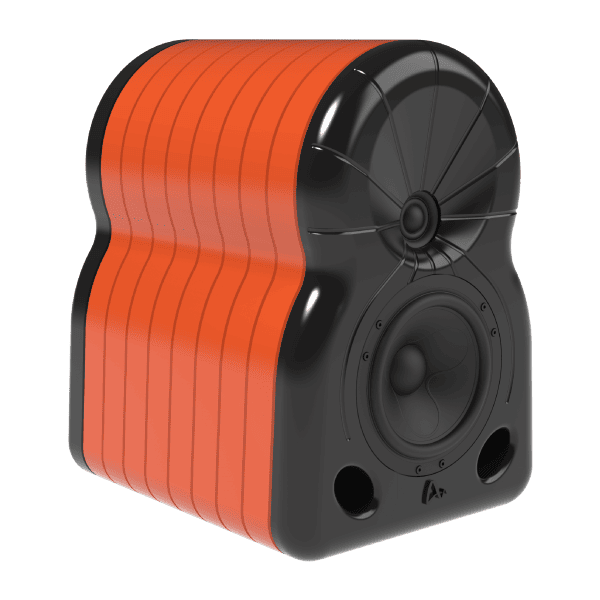

One of the best 1″ textile dome tweeters in the world, controlled by 6 powerful neodymium magnets in a symmetrical drive motor. Dispersion driven by a unique waveguide, developed to combine perfect dispersion up to 19KHz @45deg., lower crossover frequency with minimal distortion and close alignment with the woofer. All the above offer a pristine soundstage & reproduction accuracy.
MaYa ii features the best aluminum 7” woofer available with under-hung neodymium symmetrical drive motor and low-loss linear suspension.
MaYa ii shares technologies developed for our higher-end models and presents some new. Multi-layered construction with three materials with varying thicknesses and integrated struts as well as post-mounted tension beams to minimize body resonances & vibration. Precisely calculated 3D printed bass reflex oval ducts with chamfers are also installed. High quality Greek Wool fibers are used in the cabinet. Non-parallel surfaces throughout diminish standing waves.

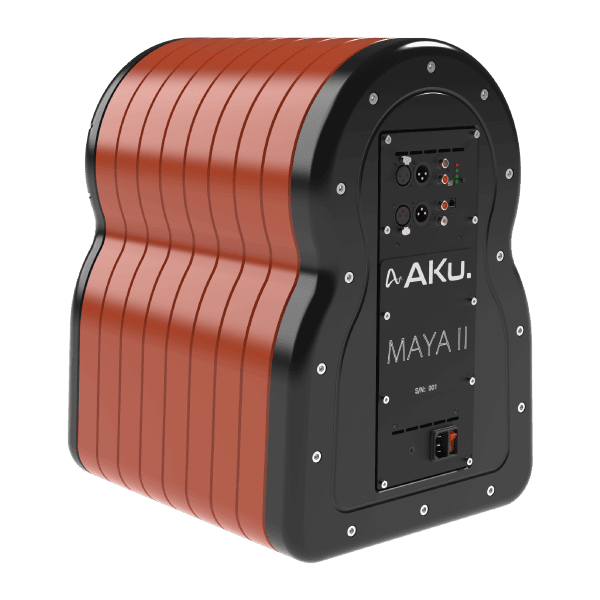

Each MaYa ii is equipped with two Ncore classD amplifiers (150W + 150W) and a powerful DSP unit, embedded in a rubber-sealed detachable rear chamber. They provide clean & undistorted power for the monitor to reproduce sound with the outmost precision and control. A metal sub-chassis provides better heat dissipation and EMI rejection. Custom speaker-room tunings can be created.
LOADING
CHOOSE YOUR COLOR IN 3D ORANGE BLACK
BLACK WHITE
WHITE BLACK
BLACK BEIGE
FULL BLACK
Technical Specifications
System
- Active 2-way monitor with multi-layered body construction. Nonplanar, sine based internal surfaces. Thorough bracing.
- Minimal Vibration three material design.
- Unique Waveguide carved into the baffle.
- Amplitude, time & phase aligned.
Driver Composition
- Mid-Bass section: one 7″ anodized aluminum, high-excursion, symmetrical drive, neodymium woofer.
- Treble section: one 1″ textile dome, neodymium, symmetrical motor tweeter with high power handling, low distortion & cross capability.
Frequency Response
2pi
- 49Hz – 21000Hz @ +-0.5dB
- 38Hz – 40000Hz (-10dB)
4pi
- 30Hz – 22000Hz @ +-2dB
- 27Hz – 40000Hz (-10dB)
SPL
110dB

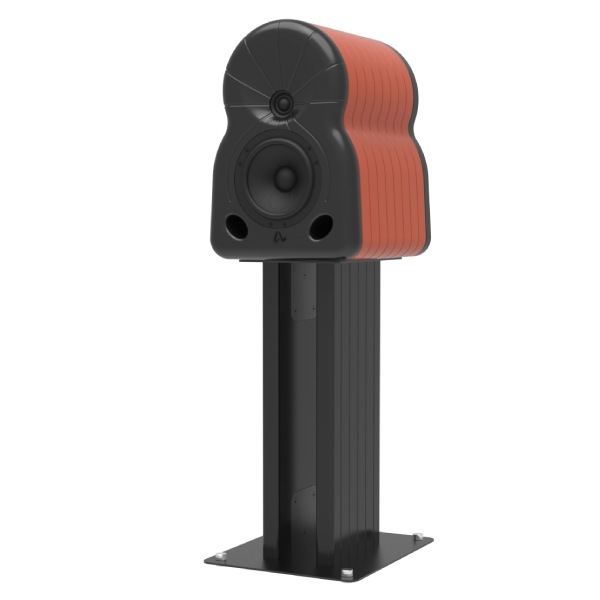

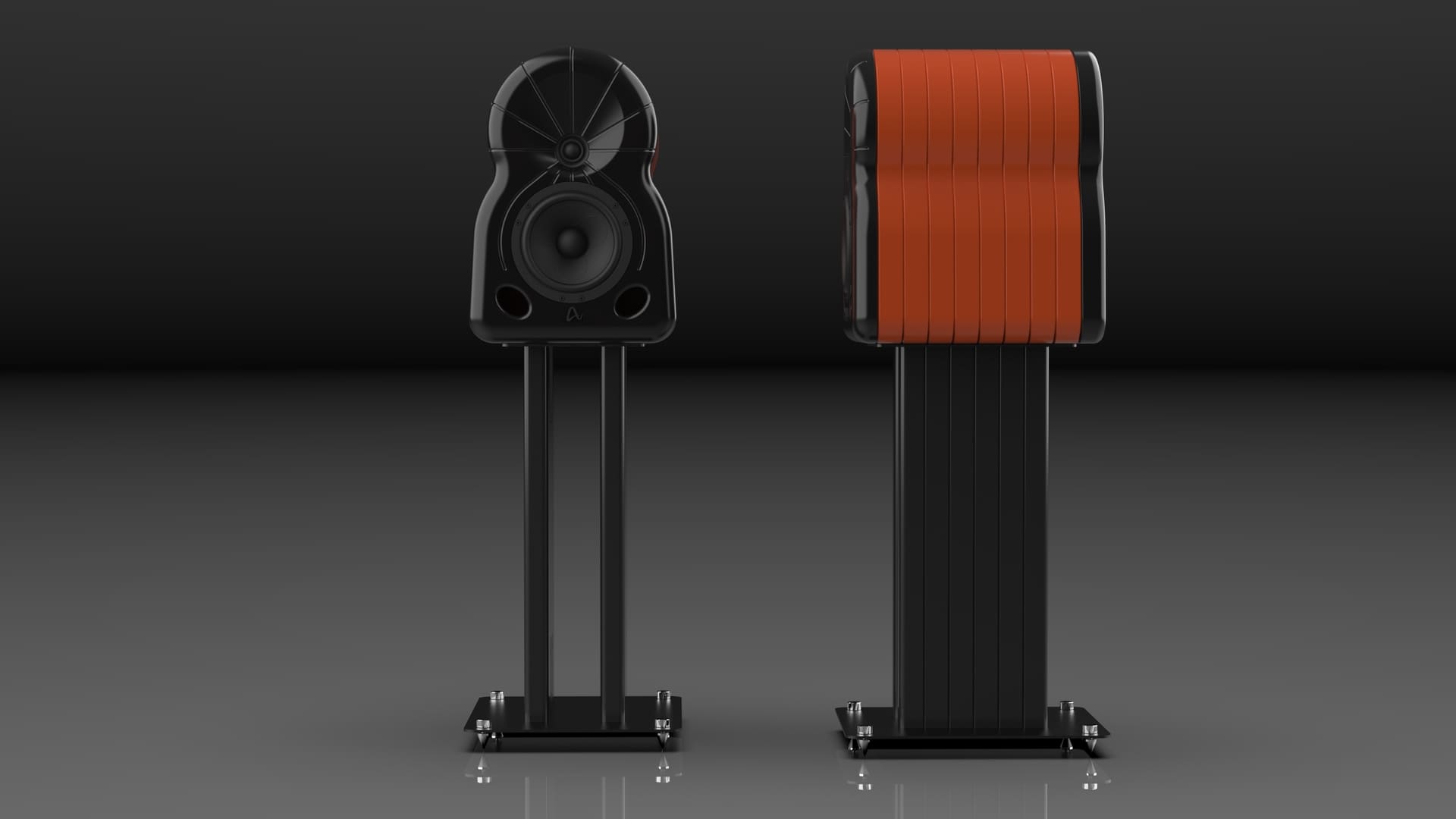

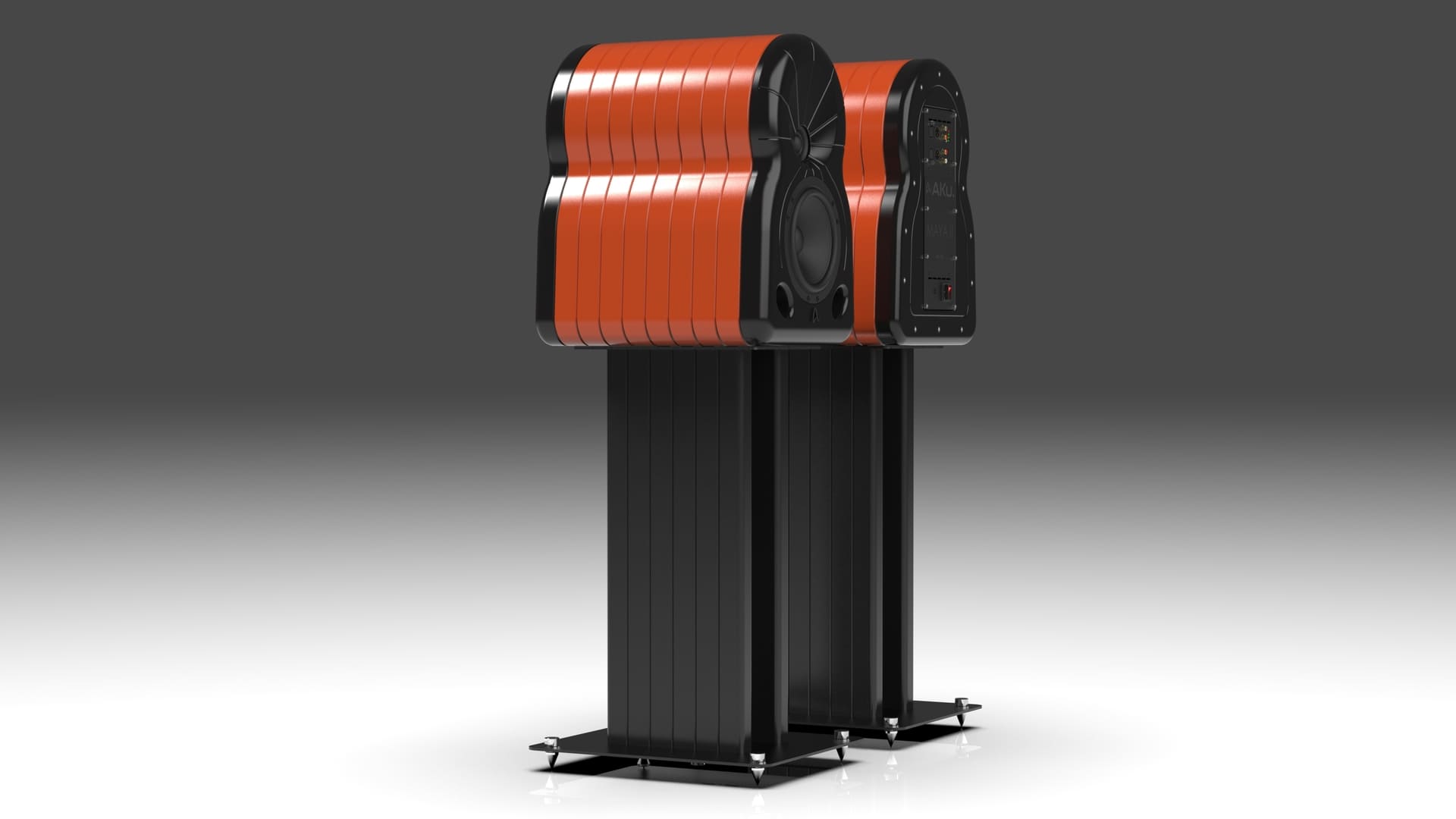

Stands
Hand painted MDF stand with metal top/bottom plates. Decoupling feet and rubber speaker contacts.
Amplification /DSP
- One custom AKu-Hypex Ncore 2channel amplifier with DSP plus Digital and Analog I/O
- Three DSP presets (P1-Flat, P2-Harmon, P3-Studio)
- Mid-Bass: 150Watt
- Treble: 150Watt
- Frequency Response: 10Hz-50KHz
- SNR: 118dB
- Distortion (THD+N): 0.006% @ half power
- Global Mains Voltage compatibility (100-240VAC)
- Efficiency: 92%
- Max Power Consumption: 350W
- Power Connector: 3-pin IEC 250Vac, 10A male
- Neutrik XLR balanced inputs for Analog & AES (up to 192KHz)
- Hypex Gold RCA unbalanced input for Analog & S/PDIF (up to 192KHz)
- Optical – Toslink input (up to 96KHz)
- High-End AKM ADC/DACs
THD
avg.0,2% @ 95dB
Dimensions
- H:45cm W:32cm D:49cm (without Stand)
- H:17.71in W:12.59in D:19.29in
- H:107cm W:33,3cm D:49cm (with Stand)
- H:42.12in W:13.11in D:19.29in
Weight
- Speaker: 19,2kg / 42.32 lbs (each)
- Stand: 14,5kg / 31.96 lbs (each)
Request your system
By clicking the "inquire" button, you can configure & customize your AKu sound system.
