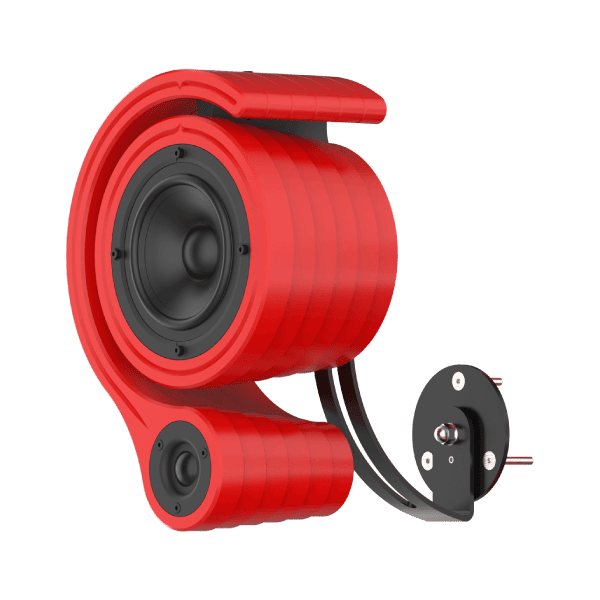

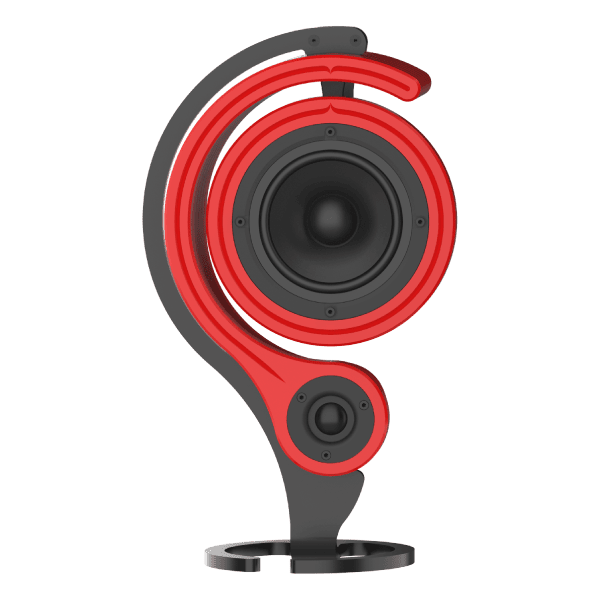

perix sat

Passive 2-way, 2 chamber satellite with stacked mdf cabinet construction and laser-cut steel stands. Nonplanar internal surfaces. Mirrored Left-Right design.

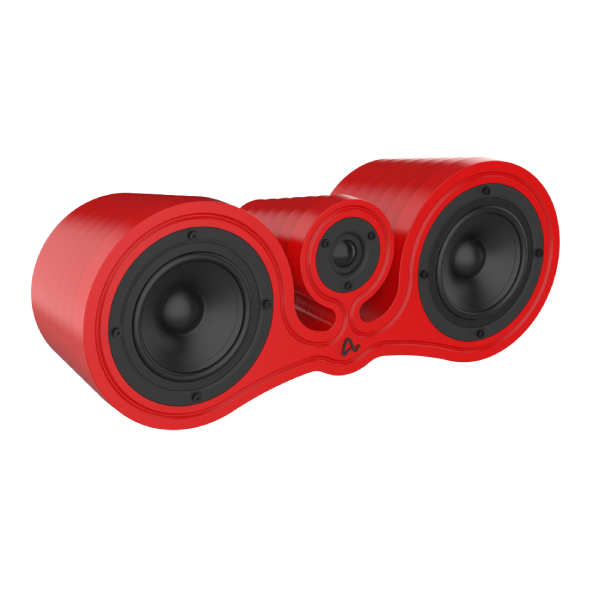

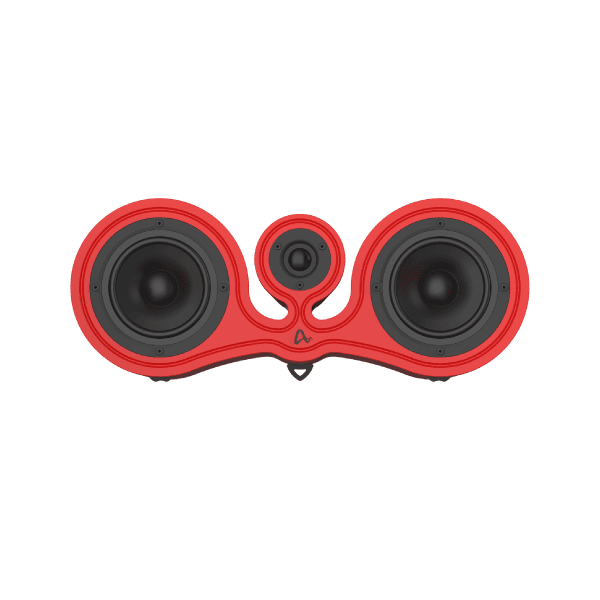

perix center

Passive 2-way, 3 chamber center channel satellite, with stacked mdf cabinet construction and laser-cut steel feet or wall mount. Nonplanar internal surfaces.

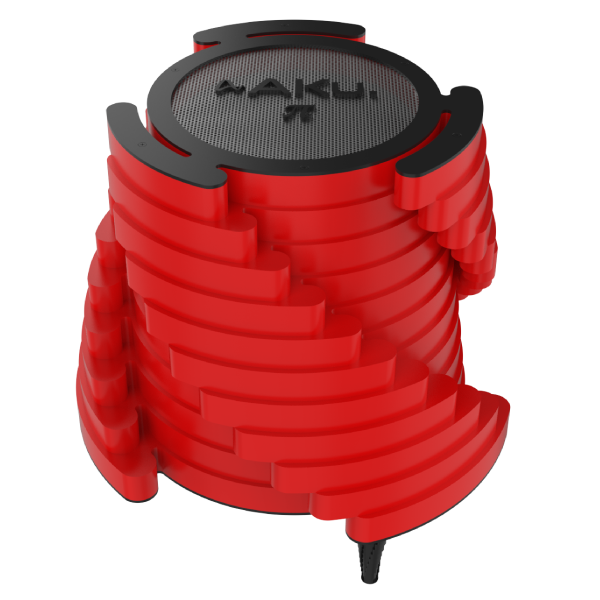

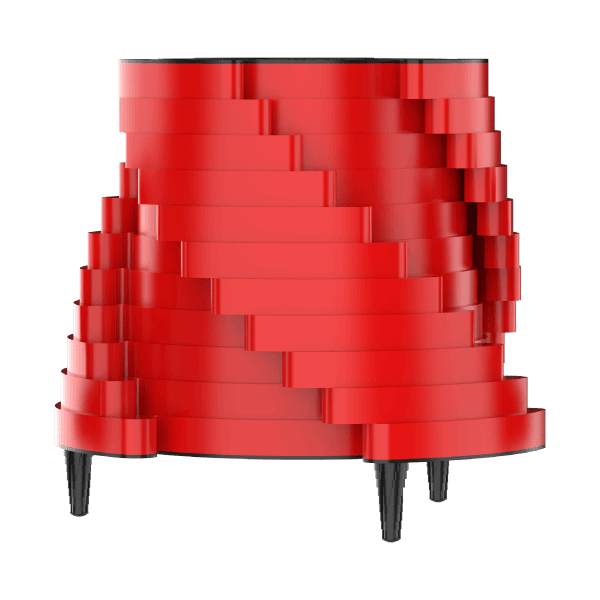

perix sub v2.1

Active 250Watt subwoofer with stacked mdf cabinet construction, laser-cut steel covers and 3D-printed supports. Ribbed, nonplanar internal surfaces. Embedded 38mm braces.

perix sub v5.1-7.2

Active 500Watt subwoofer with stacked mdf cabinet construction, laser-cut steel covers and 3D-printed supports. Ribbed, nonplanar internal surfaces. Embedded 38mm braces.

perix sat/center

Mid-Bass Section: one/two high-sensitivity 5,5” midwoofer with coated fiberglass cone, powerful magnet, die cast Alu chassis and low damping SBR surround.
Treble section: one 0,75″ damped silk diaphragm, high-power tweeter with high power handling and wide dispersion.

perix sub v2.1

one 10” aluminum, long-excursion 250Watt subwoofer on top paired with one 10″ aluminum passive radiator at the bottom.

perix sub v5.1-7.2

dual opposed push-push 10” hd paper, long-excursion 450Watt subwoofers.

perix sat/center

passive 3KHz – 2^nd order Butterworth with high quality polypropylene capacitors, air-core inductors & zobel networks (proposed high pass: 150Hz BW24)

perix sub

active 150Hz – 4^th order Butterworth

perix sat/center

140Hz – 22000Hz @ +-3dB

perix sub v2.1

27Hz – 200Hz @ +-6dB

perix sub v5.1-7.2

37Hz – 200Hz @ +-6dB

perix sat

6 Ohm

perix center

6 Ohm

perix sat

Jack 6.3mm

perix center

Jack 6.3mm

perix sub v2.1

Neutrik Speakon

perix sub v5.1-7.2

Neutrik Speakon

perix sat

106dB

perix center

109dB

perix sub v2.1

111dB

perix sub v5.1-7.2

115dB

perix sat

87dB (2,83V @ 1m.)

perix center

90dB (2,83V @ 1m.)

perix sat

50-120Watt RMS

perix center

50-200Watt RMS

perix sub v2.1

250Watt

perix sub v5.1-7.2

500Watt

• One custom AKu-Hypex Ncore 1channel amplifier with DSP and Analog Gain control
• Three DSP presets (Flat, Bass Contour, free for Personalization)
• Frequency Response: 10Hz-50KHz
• SNR: 118dB
• Distortion (THD+N): 0.006% @ half power
• Global Mains Voltage compatibility (100-240VAC)
• Efficiency: 92%
• Max Power Consumption: 350W (v2.1) – 650W (v5.1-7.2)
• Power Connector: 3-pin IEC 250Vac, 10A male
• XLR balanced input & loop Output
• Stereo RCA unbalanced input
• Stereo high level input
• Neutrik Speakon output

perix sat

H:320mm W:222mm D:132mm (without stand)
H:12.60in W:8.74in D:5.20in

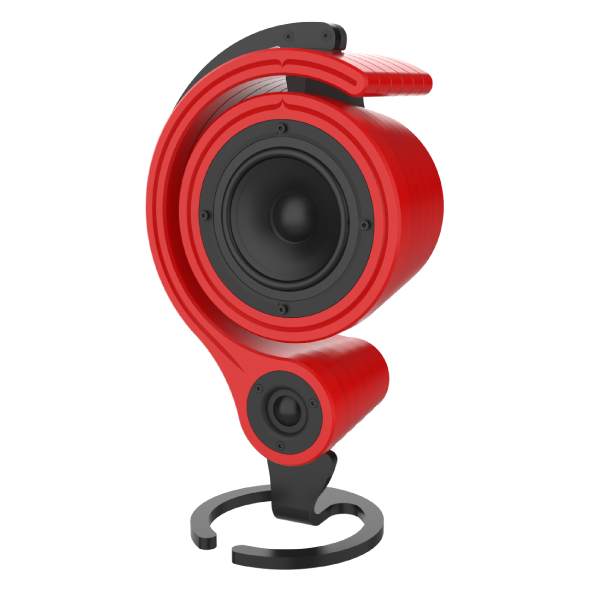

perix sat

H:400mm W:242mm D:160mm (desktop stand)
H:15.75in W:9.53in D:6.30in

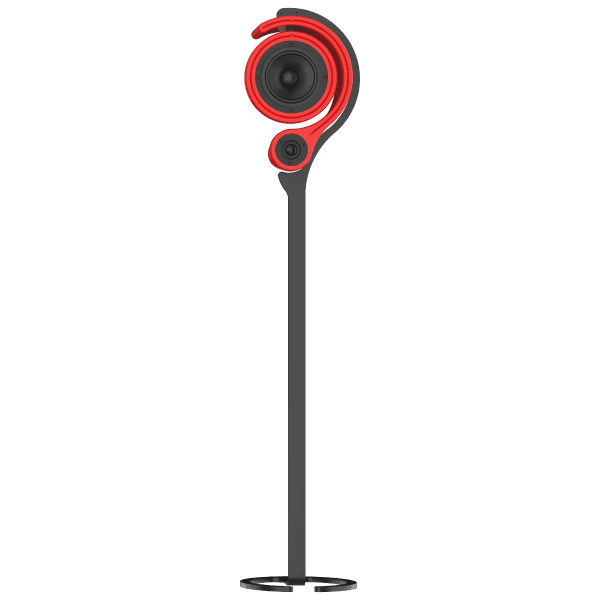

perix sat

H:1200mm W:248mm D:340mm (floor stand)
H:47.24in W:9.76in D:13.38in

perix center

H:191mm W:491mm D:154mm
H:7.52in W:19.33in D:6.06in

perix sub

H:512mm W:550mm D:550mm
H:20.15in W:21.65in D:21.65in

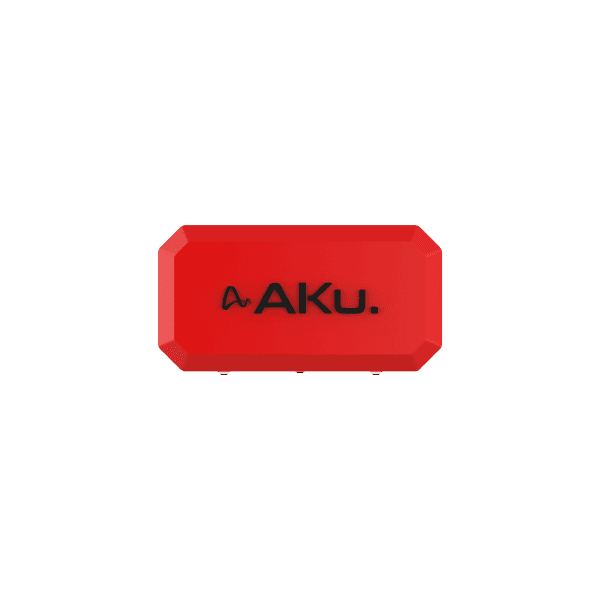

perix sub amp

H:140mm W:300mm D:76mm
H:5.51in W:11.81in D:2.99in

perix sat

(w/o stand): 4,3kg / 9,48lbs each

perix sat

(w/desktop stand): 5,9kg / 13lbs each

perix sat

(w/floor stand): 8,65kg / 19lbs each

perix sat

(w/wall mount): 4,85kg / 10,69lbs each

perix center

7,65kg / 16,87lbs

perix sub v2.1

(w/amp): 42kg / 92,40lbs

perix sub v5.1-7.2

(w/amp): 44,8kg / 98,77lbs
