Perception-Challenging

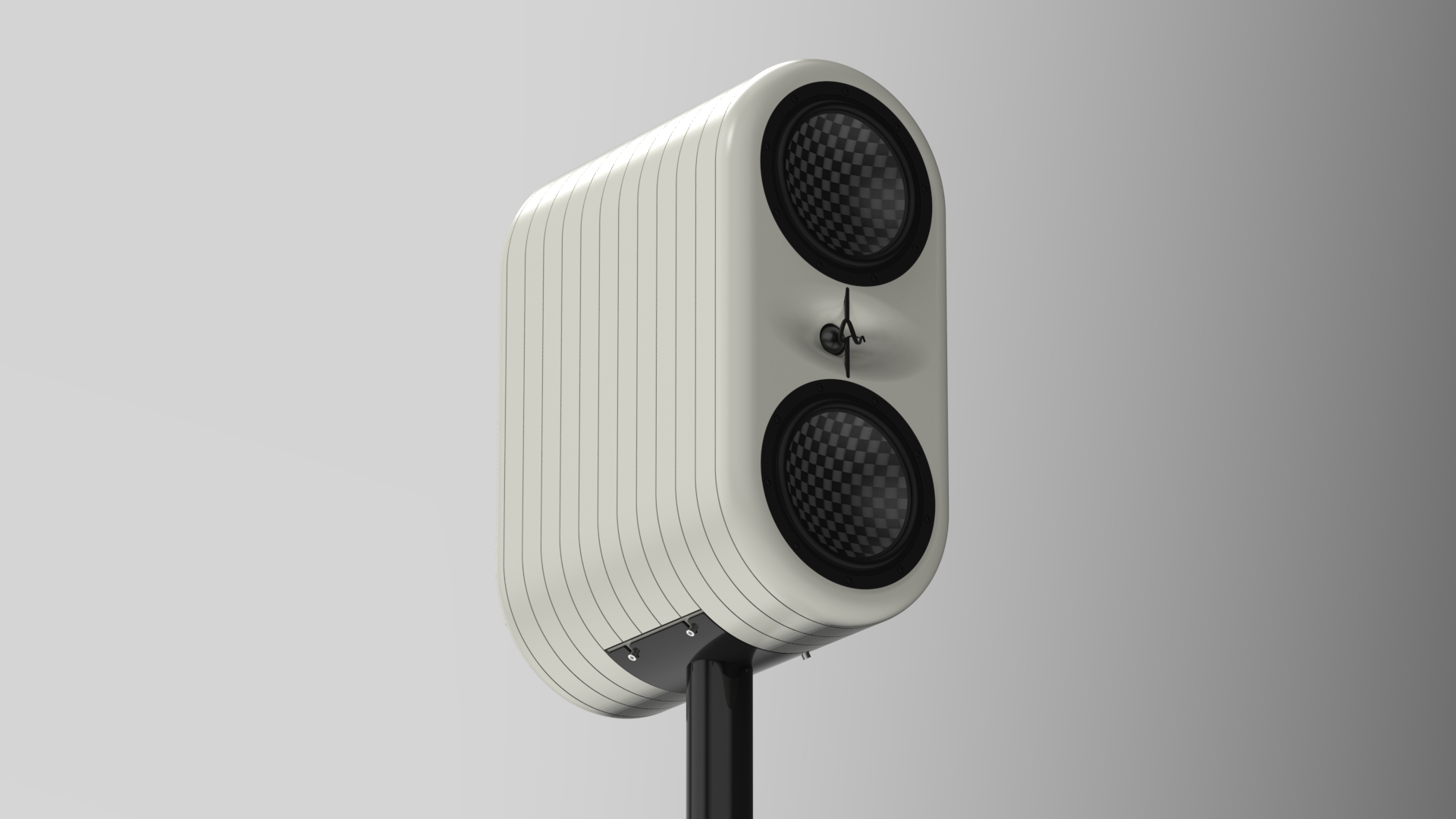

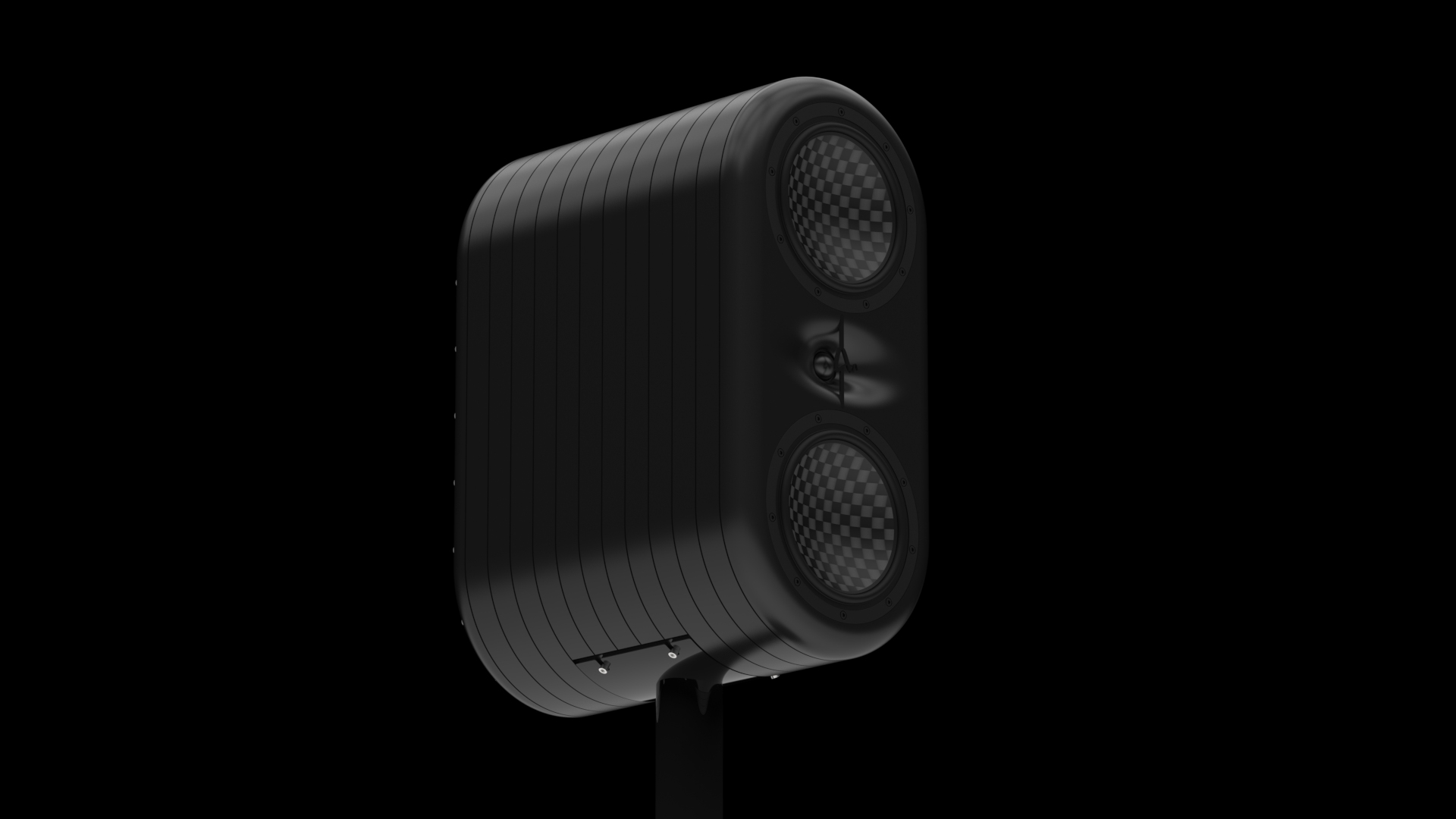

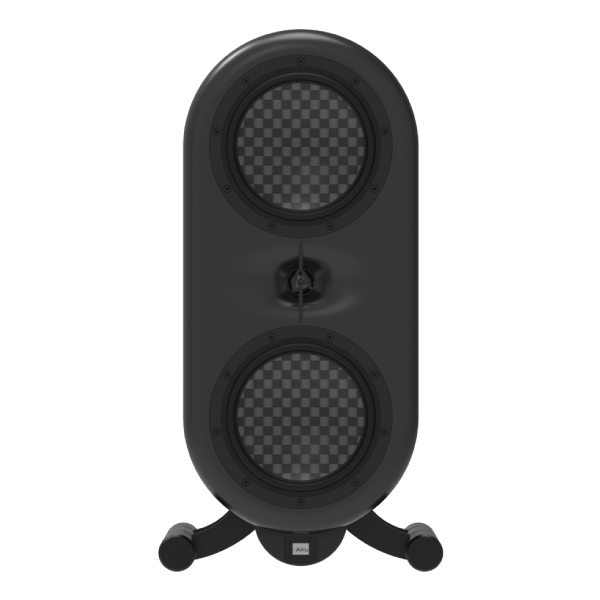

Onar is a midfield / standmount active loudspeaker system for home and studio use. Delivering remarkable performance for its size, applying advanced design solutions and meticulous construction. Onar utilizes a D’appolito configuration with a pair of 9.5” Textreme® woofers, offering low distortion in high power operation, and a 1.4” Al-Mg tweeter integrated with a baffle-carved waveguide. The system is powered by a pair of Ncore high-power low-distortion amplifiers, controlled by a high-end DSP.
Features

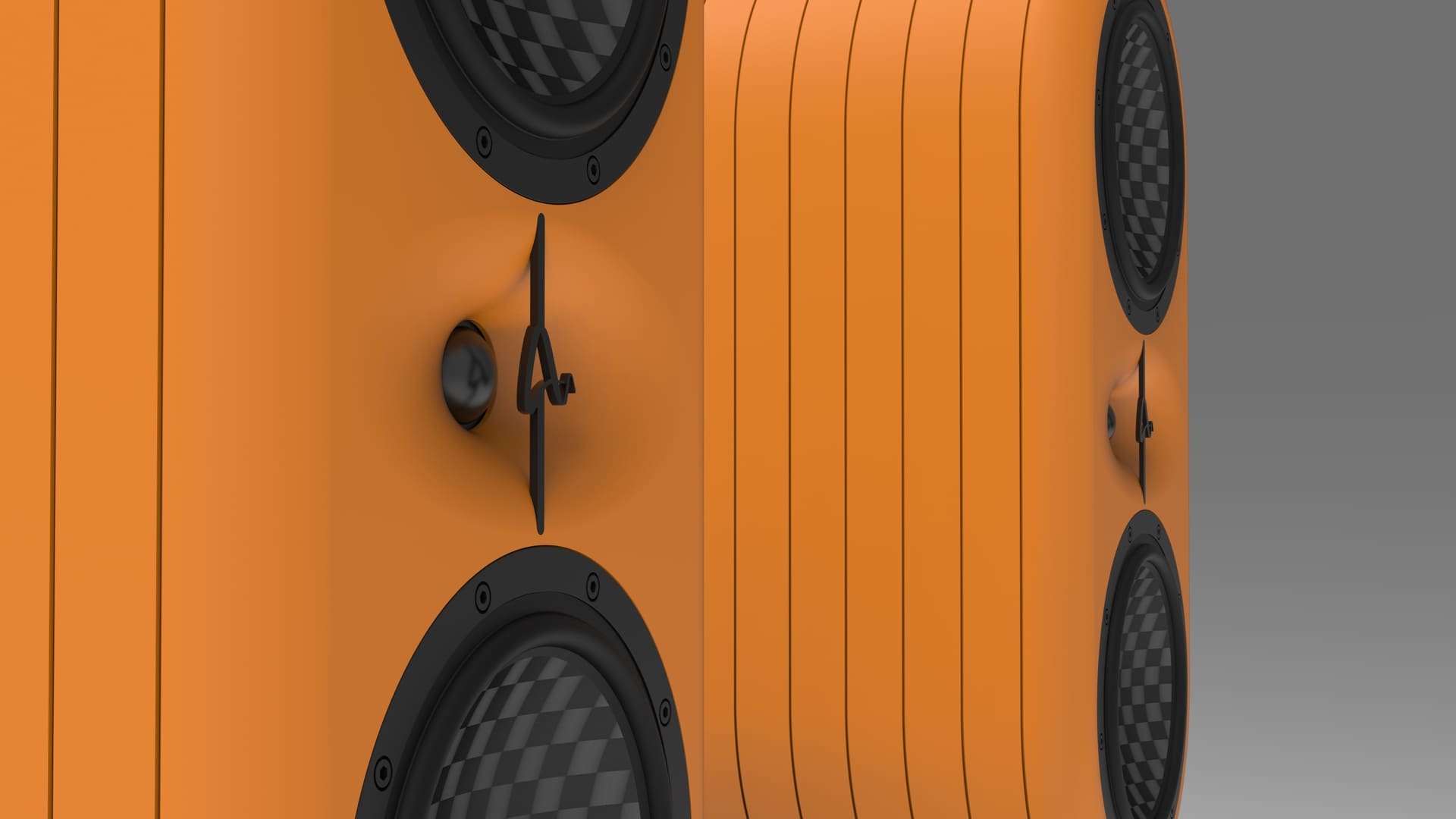

1.4” Al-Mg tweeter integrated with specially designed waveguide
9.5” advanced TeXtreme, high-excursion, optimized motor system with under-cut pole piece and dual shorting rings, neodymium woofer
38mm MDF stacked plate construction, with internal dampening materials and bracing

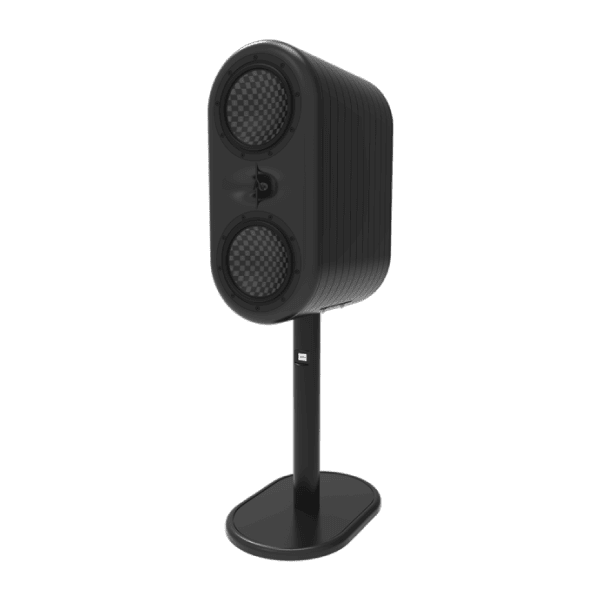

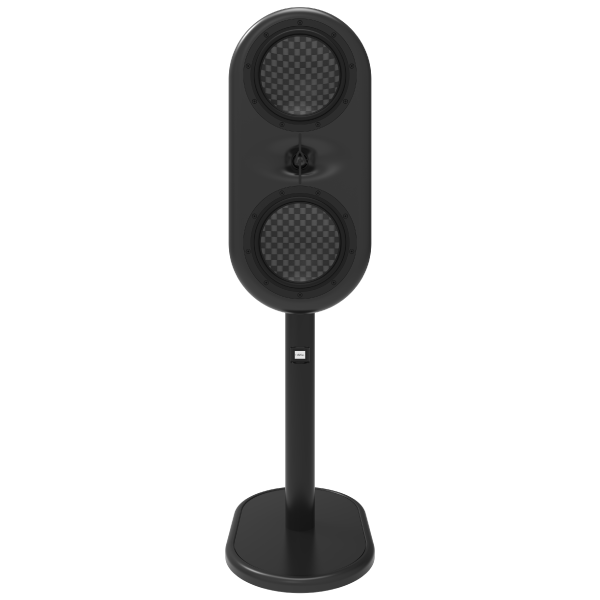

Metal Stand with low-vibration rubber wheels. Screen display for basic information (source/volume/preset)

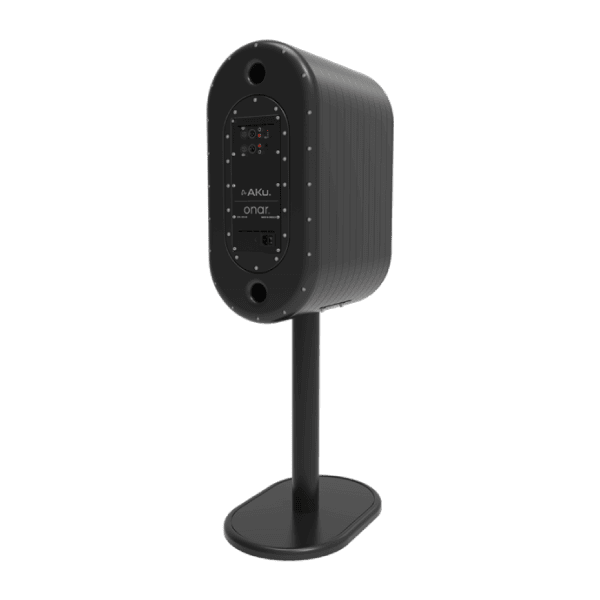

3d printed rear-firing dual bass-reflex ports tuned at 30Hz, wide Q, low-noise.
Hypex Ncore 250W+250W with integrated DSP, analog and digital inputs, with 3 preset sound profiles.
LOADING

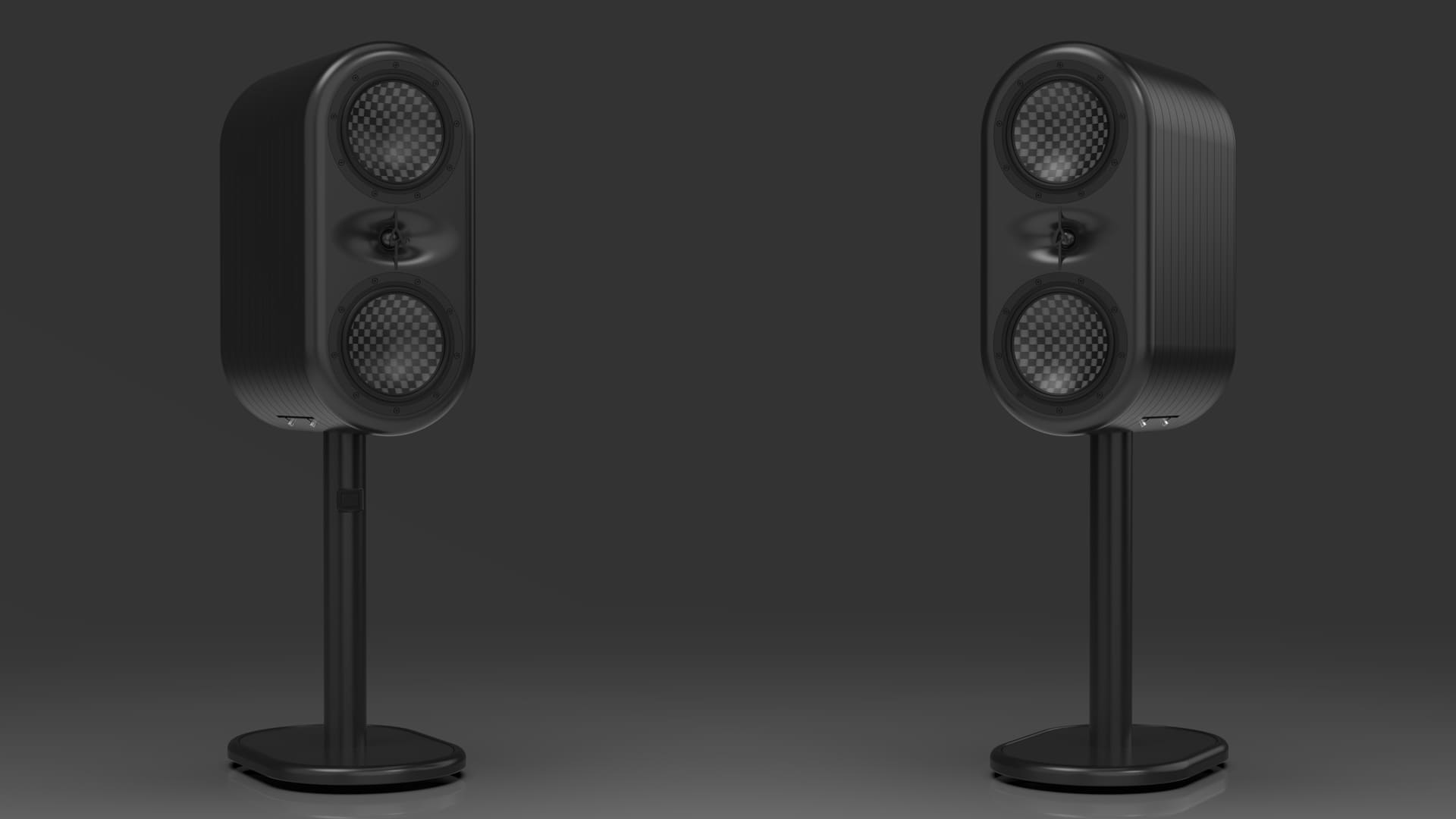

CHOOSE YOUR COLOR IN 3D IVORY BLACK
TITIANIUM WHITE
PEARL BEIGE
LUMINOUS ORANGE

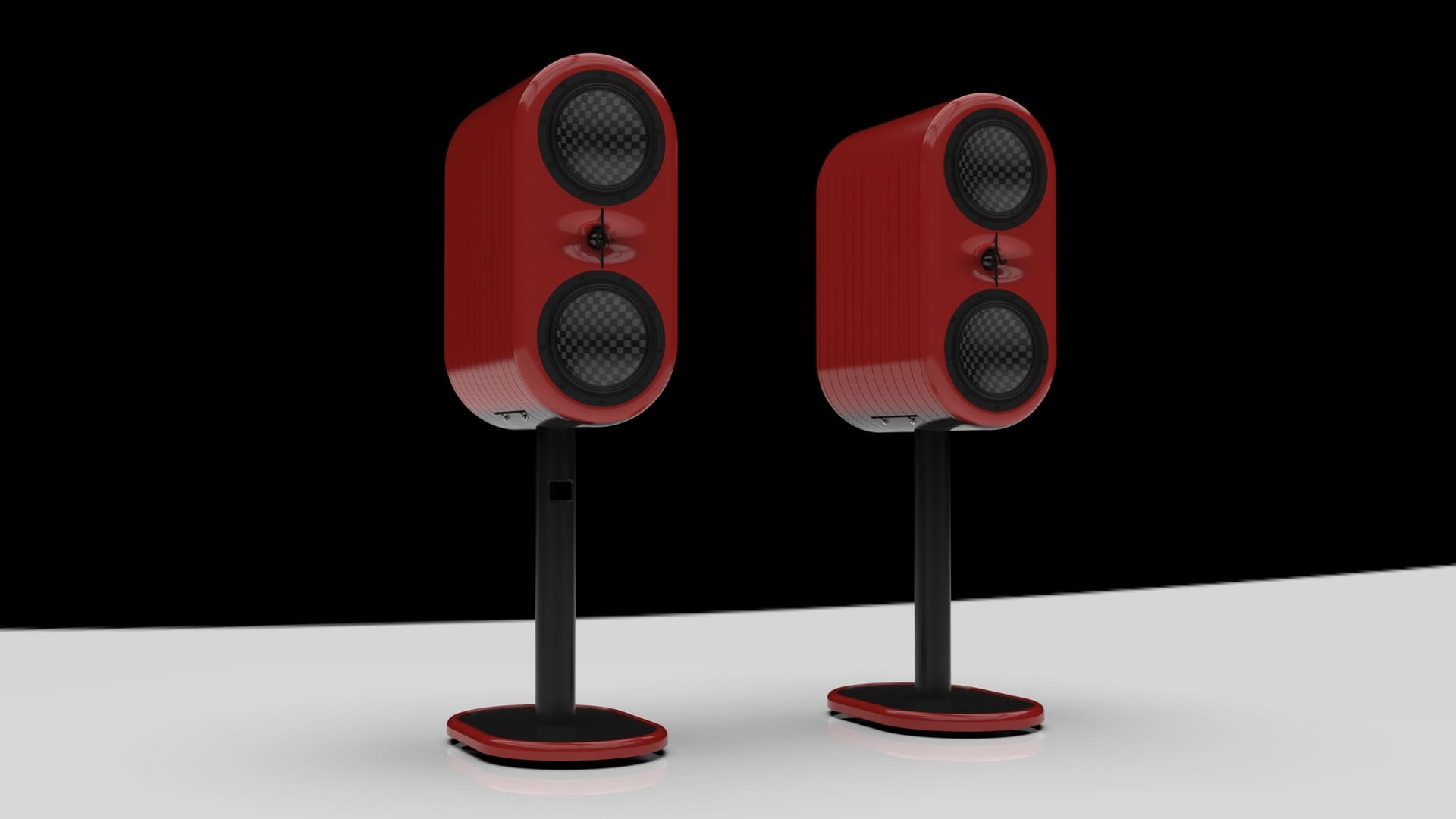

PURE RED
Technical Specifications
System
- Active 2-way speaker with multi-layered MDF/rubber body construction. Nonplanar, sine based internal surfaces. Thorough bracing.
- Minimal Vibration three material design.
- Specialized Waveguide carved into the baffle.
- Control display screen with remote control.
- Amplitude, time & phase aligned.
Driver Composition
- Mid-Bass section: two 9.5” advanced TeXtreme, high-excursion, optimized motor system with under-cut pole piece and dual shorting rings, neodymium woofer.
- Treble section: one 1,34” aluminum-magnesium dome, neo motor high-excursion tweeter with high power handling, low distortion & cross capability.
Frequency Response
20Hz – 20000Hz @ +-1.8dB
SPL
120dB
Amplification /DSP
- One custom AKu-Hypex Ncore 2channel amplifier with DSP plus Digital and Analog I/O
- Three DSP presets (P1-Flat, P2-Harmon, P3-Studio)
- Mid-Bass: 250Watt
- Treble: 250Watt
- Frequency Response: 10Hz-50KHz
- SNR: 118dB
- Distortion (THD+N): 0.006% @ half power
- Global Mains Voltage compatibility (100-240VAC)
- Efficiency: 92%
- Max Power Consumption: 650W each
- Power Connector: 3-pin IEC 250Vac, 10A male
- Neutrik XLR balanced inputs for Analog & AES
- Hypex Gold RCA unbalanced input for Analog & S/PDIF (up to 192KHz)
- Optical – Toslink input (up to 96KHz)
- High-End AKM ADC/DACs
- Status Screen & Remote Control
THD
avg.0,2% @ 98dB
Dimensions
- H: 67.5cm W: 31.5cm D:49.4cm (without Stand)
- H:26.57in W:12.4in D:19.44in
- H: 126.2cm W: 35.9cm D:53.8cm (with Stand)
- H:49.68in W:14.13in D:21.18in
Weight
- Speaker: 35kg / 77.2 lbs (each)
- Stand: 12kg / 26.4 lbs (each)
Request your system
By clicking the "inquire" button, you can configure & customize your AKu sound system.
